Press Pack vs. Module IGBTs: Choosing the Right Power Semiconductor for Your Industrial Applications

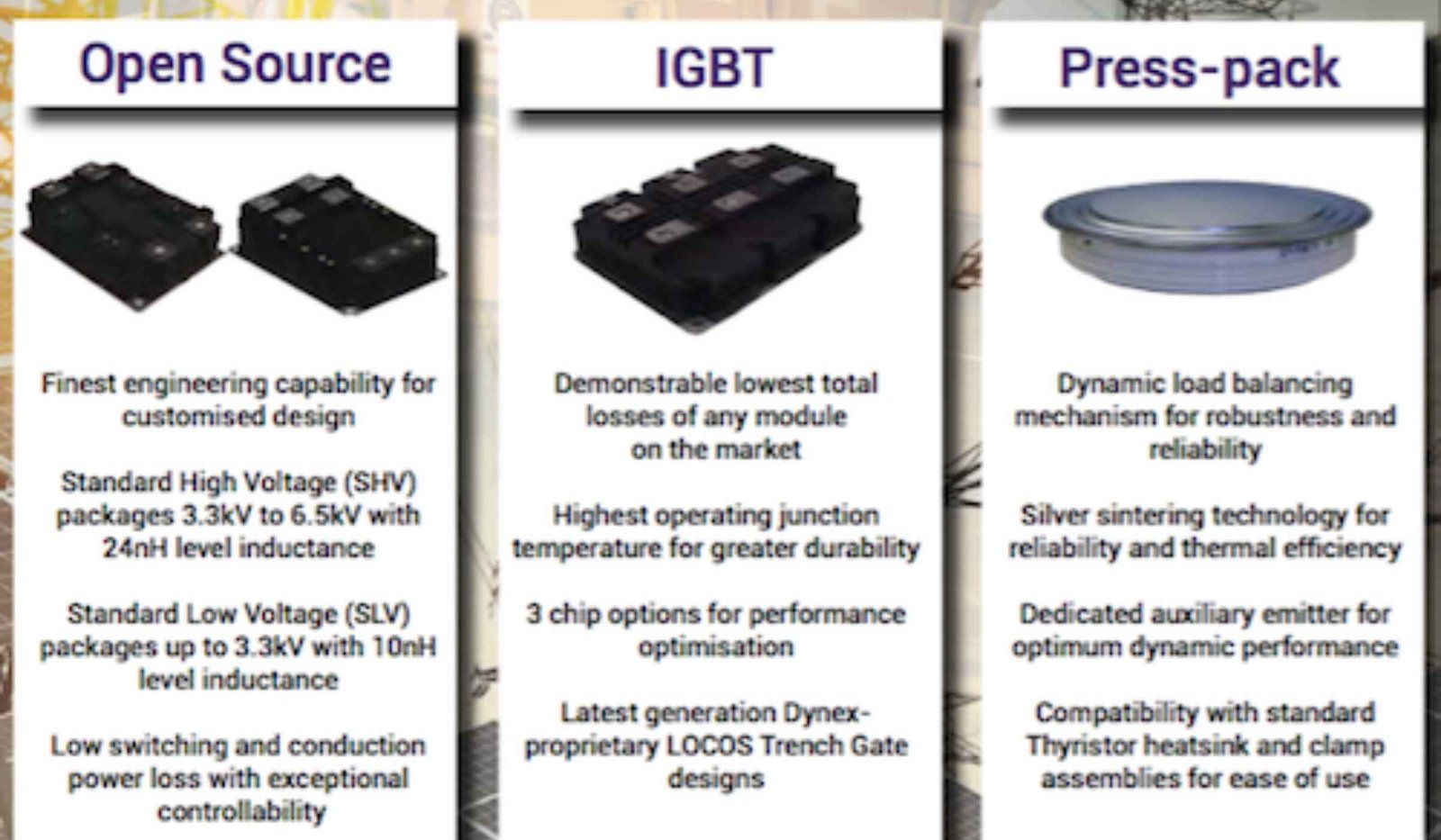

In the demanding world of high-power electronics, engineers must carefully choose between two dominant packaging technologies: the standard isolated-base IGBT module and the press pack IGBT. Press Pack vs. Module IGBTs Each technology serves specific engineering requirements, defined largely by thermal management, mechanical robustness, and system architecture. Choosing the right device is critical because the packaging style directly influences thermal characteristics, reliability, and total system cost. While isolated modules are the industry standard for most general applications, press pack IGBTs offer distinct advantages in extreme environments where series connection and long-term mechanical durability are paramount for high-voltage energy transmission.

Quick Bio: Press Pack vs. Module IGBTs

Understanding the Structure of IGBT Modules

IGBT modules are the most common solution for modern power electronics, integrating multiple chips, freewheeling diodes, and often gate drivers into a single compact, isolated package. The internal architecture typically relies on wire bonding and solder interfaces to connect the silicon chips to the insulating ceramic substrate and baseplate. Press Pack vs. Module IGBTs While this modular design is highly efficient for most commercial applications, these internal solder and wire bond junctions are frequent points of failure due to thermal cycling. Despite this, the modular approach remains the preferred choice for motor drives, renewable energy inverters, and EV charging systems due to their ease of installation.

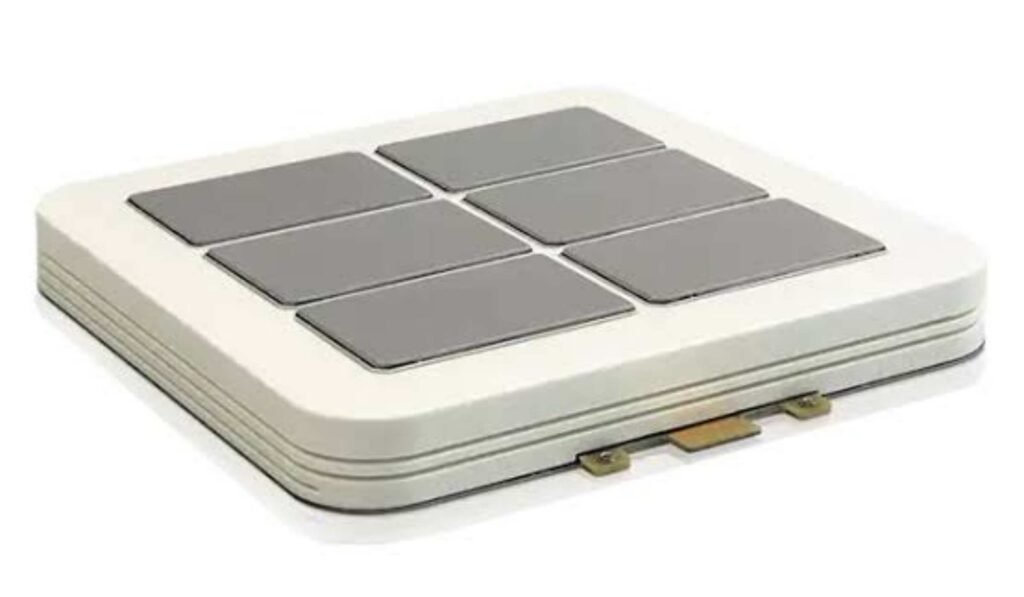

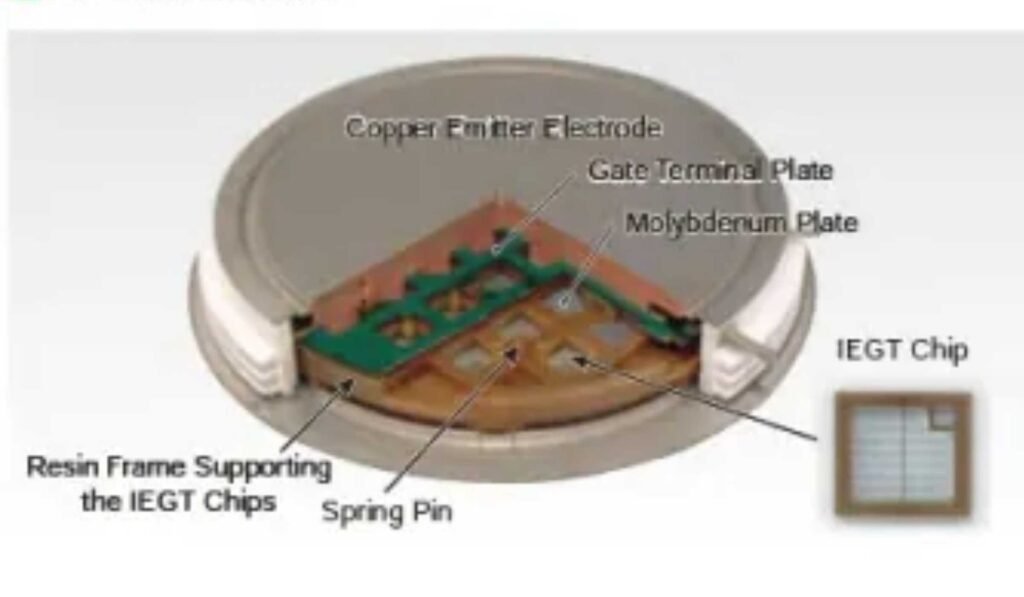

The Mechanical Foundation of Press Pack IGBTs

Press pack IGBTs diverge from traditional modules by replacing fixed wire bonds and solder joints with an external mechanical clamping system. This design utilizes a spring-based assembly to apply uniform Press Pack vs. Module IGBTs pressure across the semiconductor chips, ensuring solid electrical and thermal contact. By eliminating the vulnerable solder and wire bond interfaces, press pack IGBTs are inherently more robust against thermal fatigue. This structural difference allows them to operate reliably in harsh, high-power environments where vibration or extreme temperature swings might otherwise cause traditional modules to degrade prematurely. This mechanical integrity is a defining feature for long-term industrial reliability.

Why Thermal Management Differs Between the Two

Thermal management is a critical differentiator when comparing these two technologies. Press Pack vs. Module IGBTs IGBT modules transfer heat from the silicon chips through a ceramic substrate to a copper baseplate, which is then mounted to a heatsink. This path introduces thermal resistance at every interface. Conversely, many press pack IGBT designs support double-sided cooling, allowing heat to be extracted from both the top and bottom of the device directly. This significantly reduces thermal resistance, enabling press pack IGBTs to achieve higher power density and maintain cooler junction temperatures during continuous high-load operations, which is essential for massive high-voltage systems.

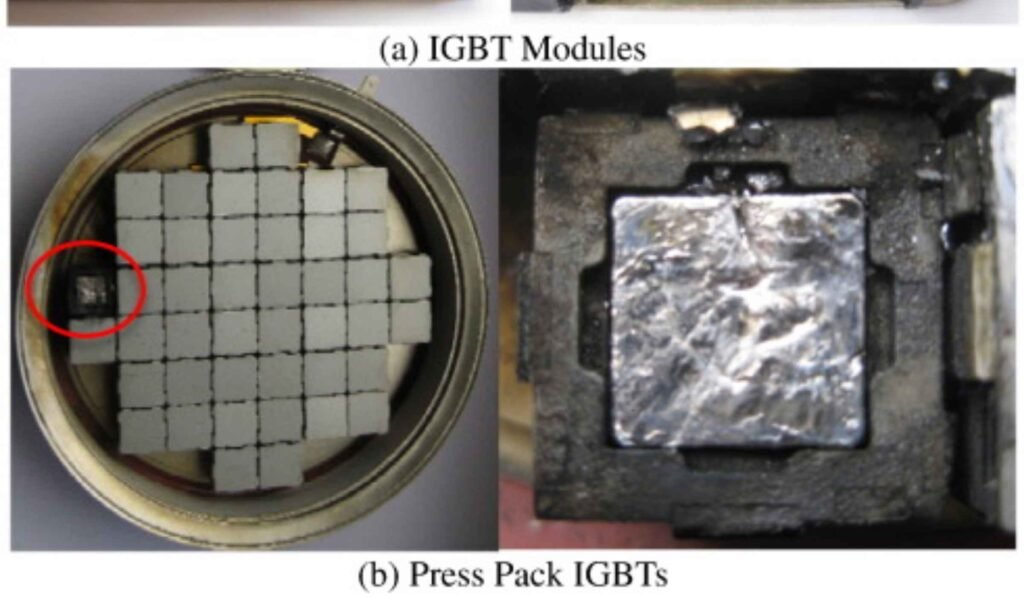

Failure Modes and Short-Circuit Robustness

A significant advantage of the press pack IGBT is its inherent failure mode. Press Pack vs. Module IGBTs In the event of a catastrophic chip breakdown, press pack IGBTs are engineered to fail to a short circuit. This is a critical safety feature in high-voltage series-connected stacks, such as those used in HVDC converters, where a failed component must continue to conduct current to prevent a system-wide shutdown. In contrast, traditional IGBT modules often fail as an open circuit, which can lead to voltage imbalances and potentially catastrophic damage to remaining healthy components in series-connected configurations, making press pack IGBTs the safer choice for grid-critical infrastructure.

Series Connection Capabilities

For high-voltage applications requiring series connection, the press pack IGBT is the industry-preferred solution. Their physical design—featuring rigid electrodes and a symmetric structure—makes them straightforward to assemble in vertical stacks. This “top-to-bottom” electrical connection simplifies the mechanical design of high-voltage valves and minimizes stray inductance compared to standard modules, which require complex cabling or busbar arrangements. Press Pack vs. Module IGBTs The ability to easily stack press pack IGBTs reduces the overall footprint of the converter system, making them indispensable for large-scale power transmission and distribution projects where space-constrained housing is a significant design factor for engineers.

Reliability in Harsh Industrial Environments

Reliability is the cornerstone of industrial power conversion. Because press pack IGBTs avoid the common failure points of wire bonds and solder interfaces, they demonstrate superior longevity in 24/7 industrial operations. Press Pack vs. Module IGBTs The pressure contact technology inherently handles thermal expansion and contraction cycles better than rigid soldered joints, which can develop cracks over time. This makes press pack IGBTs the device of choice for demanding sectors like rail traction, where mechanical shock and vibration are constant, and for renewable energy plants that must operate reliably for decades with minimal maintenance interruptions, ultimately lowering the total cost of ownership.

Evaluating Current Capacity and Scalability

IGBT modules are available in a vast array of current ratings, making them highly versatile for everything from small motor drives to large wind turbines. They are designed to be “plug-and-play,” Press Pack vs. Module IGBTs simplifying the assembly process for mass-produced inverters. Press pack IGBTs, however, excel in ultra-high-power applications where extremely high current and voltage handling are required. Modern press pack designs often utilize multi-cell modular architectures, allowing engineers to scale the power rating by simply stacking more sub-modules. This scalability provides a flexible design path that avoids the need for massive parallelization of individual, lower-power modules in high-voltage energy systems.

Complexity of Mounting and Clamping Systems

While IGBT modules offer the benefit of simple mounting to a flat heatsink using screws, Press Pack vs. Module IGBTs press pack IGBTs require a specialized, calibrated clamping system. This external clamp must apply a very specific amount of force to ensure uniform pressure across the silicon chips. If the pressure is too low, electrical contact is poor; if it is too high, the internal structure may be compromised. While this adds complexity to the mechanical design of the system, it ensures that every chip operates within its optimal electrical and thermal safe operating area, justifying the extra effort for high-power installations.

The Role of Stray Inductance in Performance

Minimizing stray inductance is vital for high-speed switching and protecting the IGBT from voltage spikes. Press Pack vs. Module IGBTs The internal structure of a press pack IGBT is inherently more compact and symmetric, which naturally keeps internal stray inductance at a lower level compared to standard wire-bonded modules. Lower stray inductance allows for faster switching transitions and reduced voltage overshoots, improving overall system efficiency and reducing the size and cost of the required snubber circuits. This electrical performance advantage makes press pack IGBTs highly efficient in high-frequency switching environments where every micro-henry of inductance can significantly impact performance.

Humidity and Environmental Sealing

Press pack IGBTs are typically housed in hermetically sealed ceramic cases, Press Pack vs. Module IGBTs providing excellent protection against moisture and environmental contaminants. This is a substantial benefit in humid or dusty outdoor environments where standard plastic-encapsulated modules might eventually face corrosion or insulation degradation. By sealing the active components away from the environment, press pack IGBTs ensure that their electrical performance remains stable over time, even in the most challenging geographical locations, such as remote renewable energy substations or coastal power transmission hubs, where environmental protection is a major design priority for long-term system health.

Ease of Maintenance and Replacement

In high-power systems, downtime is incredibly expensive. IGBT modules are often easier to swap out in the field Press Pack vs. Module IGBTs because they do not require recalibrating an external clamping system. However, the modular nature of advanced press pack stacks—where sub-modules can be replaced individually—is changing this dynamic. While the initial setup of a press pack system is more involved, the increased reliability often results in fewer emergency repairs. Deciding between them depends on whether your priority is the simplicity of field replacement or the goal of minimizing the number of failures over the equipment’s entire lifetime.

Impact of Dynamic Load Balancing Technology

Recent innovations in press pack IGBT design include dynamic load-balancing (DLB) technology. Press Pack vs. Module IGBTs DLB ensures that even if there are slight variations in the physical components, current and thermal load are distributed evenly across all internal chips. This maximizes the safe operating area of the device and significantly improves its ease of use compared to older press pack designs. By actively managing the internal stresses, these advanced press pack IGBTs achieve reliability levels that were previously difficult to attain, making them an increasingly attractive option for new, cutting-edge high-power applications that require the highest possible levels of semiconductor performance.

Power Density and Size Considerations

IGBT modules are often favored for their compact footprint in general-purpose applications. Press Pack vs. Module IGBTs However, in mega-watt scale systems, the ability to stack press pack IGBTs can actually result in a more compact overall converter design than an equivalent system built with hundreds of parallel-connected plastic modules. By maximizing power density through double-sided cooling and efficient series stacking, press pack IGBTs allow for smaller enclosures and reduced system cabling. This is a critical advantage for urban rail systems or offshore wind platforms where footprint reduction translates directly into significant construction cost savings for the entire facility.

Designing for Future Sustainability

Global decarbonization goals depend heavily on efficient power conversion. Press Pack vs. Module IGBTs Both IGBT module and press pack IGBT technologies play vital roles in this transition. Modules facilitate the rapid, widespread deployment of electric vehicles and smart building energy systems, while press pack IGBTs enable the long-distance transmission of renewable energy via HVDC lines. Choosing between them is not about one being “better,” but rather which technology aligns with the scalability and reliability requirements of the application. As semiconductor packaging evolves, the lines continue to blur, with newer modular designs increasingly capturing the performance benefits of traditional press pack technology.

Comparing Cost vs. System-Level Value

When comparing costs, one must look at the system level rather than just the device price. Press Pack vs. Module IGBTs IGBT modules generally have a lower price point and lower assembly cost for small to medium systems. Press pack IGBTs have a higher initial device cost and require more sophisticated mechanical assembly. However, for a high-voltage, high-reliability system, the total cost of ownership—considering lifetime reliability, maintenance intervals, and the potential impact of downtime—often favors the press pack IGBT. Engineers must balance these capital expenditure and operational expenditure factors based on the specific criticality and lifetime expected of the power conversion equipment.

Safe Operating Area (SOA) and Robustness

The Safe Operating Area (SOA) defines the conditions under which the IGBT can operate without damage. Press Pack vs. Module IGBTs Press pack IGBTs, thanks to uniform pressure and superior thermal management, often demonstrate a more robust SOA under surge-current and short-circuit conditions. This increased robustness provides a safety margin for designers when facing unexpected grid faults or load transients. While standard modules have improved significantly in recent years, they still struggle to match the raw surge-current handling and thermal dissipation capacity of a properly clamped press pack device. This robustness is essential in grid applications that must survive severe electrical events.

Advances in Substrate Technology

The evolution of substrate technology has enabled IGBT modules to push their power density limits, Press Pack vs. Module IGBTs but the intrinsic limitations of soldering persist. In contrast, press pack IGBTs have moved toward advanced materials, such as silver-sinter bonding between chips and contact platelets, to enhance reliability. These material improvements boost thermal conductivity and reduce thermal fatigue, effectively closing the gap in thermal performance. As substrate innovation continues, both technologies are becoming more resilient, Press Pack vs. Module IGBTs but the mechanical contact method of the press pack continues to hold an edge for applications where extreme temperature cycling is the primary life-limiting factor.

Protecting Against Catastrophic Failures

Catastrophic failure in a power semiconductor can be dangerous, potentially causing explosions or fire. Press pack IGBTs are engineered with reinforced casings designed to contain internal debris if a chip explodes. This containment prevents secondary damage to surrounding components and the surrounding equipment enclosure. Press Pack vs. Module IGBTs Standard IGBT modules, Press Pack vs. Module IGBTs depending on their construction, may be more prone to venting or rupture under extreme high-energy failure scenarios. For this reason, in mission-critical infrastructure like HVDC transmission stations, the containment safety of the press pack design is often a mandatory specification for engineers and insurance compliance.

Choosing the Best Solution for Grid Integration

Integrating renewable energy into the grid requires power conversion systems that are both highly efficient and exceptionally reliable. HVDC and STATCOM systems, which are essential for grid stability, almost exclusively use press pack IGBTs because of the series connection requirements and the need for short-circuit robustness. Press Pack vs. Module IGBTs For distributed energy, such as solar farms or battery energy storage at the distribution level, standard IGBT modules are more common due to their cost-effectiveness and ease of integration. Press Pack vs. Module IGBTs The choice remains highly application-specific, dictated by the voltage levels and the required reliability of the specific grid node being supported.

Final Summary for Engineers

The choice between Press Pack and Module IGBTs is a balance of mechanical design, thermal efficiency, and system-level reliability. Modules offer simplicity, cost-effectiveness, and a vast ecosystem of support for the majority of power electronics designs. Press pack IGBTs provide the high-reliability, short-circuit-robust, and easy-to-stack architecture required for the world’s most demanding high-power applications. As power densities continue to increase and the global grid becomes more reliant on high-voltage power conversion, the importance of both packaging technologies will only grow. Press Pack vs. Module IGBTs Engineers who understand the trade-offs between these two platforms can better design the next generation of power electronics.

1. What is the fundamental structural difference between the two?

• IGBT modules use solder and wire bonds for internal connections, while press pack IGBTs use external mechanical pressure to contact the chips.

2. Which is better for series connection applications?

• Press pack IGBTs are preferred for series connection due to their symmetric, rigid structure and short-circuit failure mode, which maintains system continuity.

3. Does the press pack IGBT require a different thermal design?

• Yes, press pack IGBTs often support double-sided cooling, offering lower thermal resistance and higher power density than baseplate-cooled modules.

4. Why are press pack IGBTs considered more reliable?

• By eliminating solder joints and wire bonds—the most common failure points—press pack IGBTs are more resistant to thermal fatigue and vibration.

5. In what applications is the IGBT module the standard choice?

• IGBT modules are standard for most general power electronics, including motor drives, EV chargers, and renewable energy inverters, where ease of use is paramount.
